Serena participation @ MPS

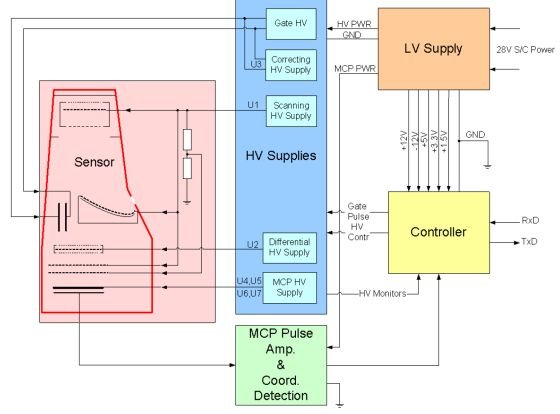

The main contribution by MPS to SERENA will be scientific support for the experiment and the High Voltage Power Supply for the PICAM sensor. This includes the 'gating' of incoming ions using an algorithm based on probability theory (Hadamard algorithm) implemented in a field programmable array (FPGA) within the HV-unit.

The MPS contribution is supported by the German Government through the German Space Agency (DLR) under contracts 50 QW 0503, 50 QW 1303, 50 QW 1702, and by the Max Planck Society.

Project lead of SERENA @ MPS

Krupp, Norbert
Norbert Krupp
Phone: +49 551 384 979-154
Room: BT2.E3.122
Fränz, Markus
Markus Fränz
Phone: +49 551 384 979-441
Room: BT2.E3.120
Links: Homepage

Serena-Team @ MPS

Fränz, Markus (Co-Investigator)
Krupp, Norbert (Co-Investigator)
Krüger, Harald

Woch, Joachim (Co-I, now in Solar department)

Engineers and Technicians:
Loose, Alexander (Electronics-Engineer)
Fischer, Henning (Electronics-Engineer)
Bambach, Patrick (Engineer)
Bührke, Ulrich (Technician)
Szemerey, Istvan (Engineer)

Serena relevante Links

SERENA Homepage IFSI, Rom
PICAM Homepage IWF, Graz

SERENA (Search for Exospheric Refilling and Emitted Natural Abundances Experiment)

The SERENA instrument suite (Search for Exospheric Refilling and Emitted Natural Abundances) will study in-situ the composition, the vertical structure and the source of the deposit processes of the exosphere of Mercury. This instrument suite is composed of the following instruments:

ELENA (Emitted Low-Energy Neutral Atoms): detection of neutral particles

MIPA (Miniature Ion Precipitation analyzer): measure of magnetospheric and solar ions fluxes

PICAM (Planetary Ion Camera): imaging mass spectrometer for planetary origin ions

STROFIO (Start From A Rotating Field Mass Spectrometer) : thermal and low energy neutral particles spectrometer.

The SERENA consortium is led by the Principal Investigator S. Orsini from IFSI, Rome, Italy.



Since MPS is only involved in the PICAM sensor we describe details of that sensor only.

BepiColombo MPO  Planetary Ion Camera (PICAM)

PICAM is one of the four sensors belonging to the SERENA instrument suite. (

PICAM Scientific Objectives

One of the major questions to be investigated by the BepiColombo mission is the role and efficiency of the surface of Mercury as a source of exospheric neutrals and magnetospheric ions.

By measuring ions at relatively low energies, i.e. from thermals up to a few keV, PICAM will offer the possibility to get information on the soil composition, on the rate of neutral escape from the surface, on the efficiency of the various source locations as well as on the physical processes that act to eject the neutrals from the surface. The main objectives of PICAM are listed as follows:

  • Processes by which Neutrals are Ejected from the Surface of Mercury
  • Large-Scale Chemical Composition of the Hermean Soil
  • Amount of Atoms Ejected from the Surface of Mercury and to Measure the Flux of Planetary Ions Returning to the Surface
  • Existence of an Ionosphere and the Convection of Plasma in the Hermean Environment
  • Structure of the Hermean Magnetosphere and its Interactions with the Solar Wind
  • Characteristics of the Solar Wind Flow Near the Planet


Technical Data

The PICAM (Planetary Ion CAMera) ion mass spectrometer operates as an all-sky camera for charged particles allowing the determination of the velocity distribution and mass spectrum for ions over a full 2π field of view (FOV), from thermal up to ~3 keV energies and in a mass range extending up to ~132 amu (Xenon). An instantaneous 2π FOV coupled with this mass range and a mass resolution better than ~100 result in a superior performance.


Energy range

1 eV - 3 keV

Energy resolution ΔE/E

10-50% (controllable)

Viewing angle

2.17 π

Angular resolution

6 – 10 deg (controllable)

Mass resolution m/Δm


Optimal temporal resolution

10 sec

Geometric factor G

0.021 cm2 ster

Instrument total mass


Power consumption

3.1-7.0 W

Data rate

0.5-3.0 kbit/s
